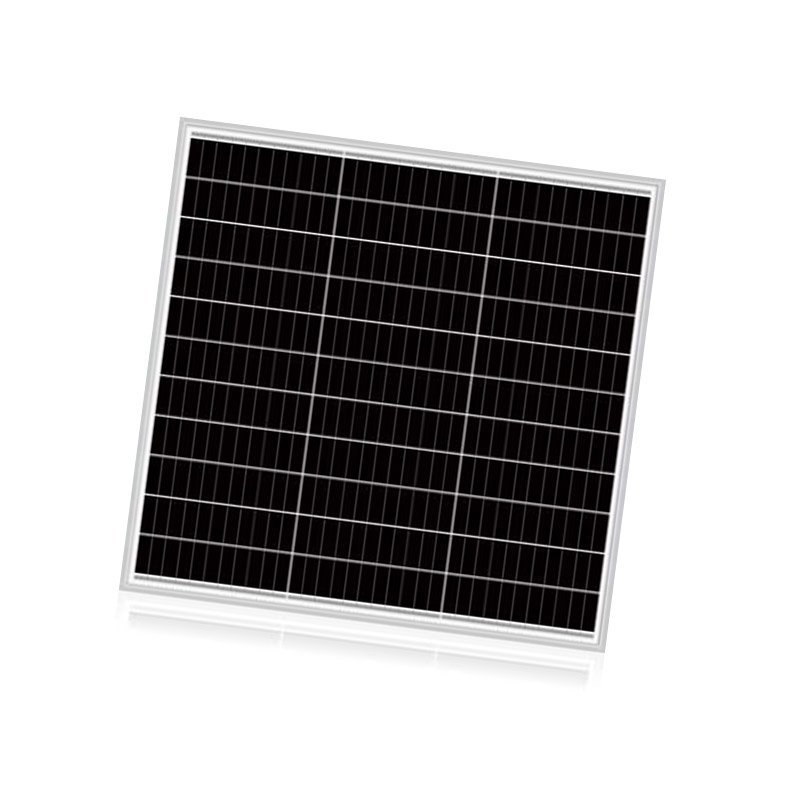

Mono Solar Module 60W, Small Solar Panel

IEC61215 & IEC61730
Couleenergy 60-watt 12-volt small solar panel is a standard-use module featuring exceptional low-light performance in a rugged frame.

Additional information

Rated Power @ STC

60 Watts

Open Circuit Voltage

22.0V

Short Circuit Current

3.45A

Maximum Power Voltage

18.6V

Maximum Power Current

3.23A

Weight

3.3kg

Dimensions

565mm × 580mm × 30mm

Cell Dimensions

182mm × 45.5mm

Cell Quantity

11 × 3 = 33 Pieces

Maximum System Voltage

1500V

Junction Box

IP68

Frame

Aluminum Alloy, Silver or Black

Cable

4mm², Customized Length

Connector

MC4 Compatible

Application Level

Class A

NMOT

45±2°C

Temp Coefficient of ISC

+0.05%/°C

Temp Coefficient of VOC

-0.32%/°C

Temp Coefficient of Pmax

-0.39%/°C

Sample Evaluation

Yes

Mixed Loading

Yes

Mono Solar Module 60W, Small Solar Panel

Mono Solar Module 60W, Small Solar Panel
Options: Shingled PV Module 60W, Full black Solar Panels, Dual-glass Solar Panels, Frameless Modules, Flexible Solar Module 60 Watts

  • Easy installation with pre-drilled hole. Each solar panel comes with 4mm² cables with solar male/female quick connectors or MC4 connectors.
  • Basic component for off-grid solar panel 12V/24V/36V/48V system, caravan, RVs, cars, boats, and off-grid solar systems.
  • Mono solar module 60W features anodized aluminum frames, reinforced corner protectors, and diode bypass technology which protects the shaded cell from overheating, and a 10-year warranty allows worry-free camping or RVing.



How A Off-grid Solar System Works, Off grid solar companies



At Couleenergy, we excel in creating tailor-made solar panels to suit your specific needs. Don’t hesitate to reach out to us and turn your vision into a reality.
