Mono Solar Panel 50W, 12V Solar Modules
Mono Solar Panel 50W, 12V Solar Module - Image 2

Image may differ from product. See the technical specification for details.

Data on this page is accurate but not sufficient for design and development. Specs and dimensions may change without notice. Contact Couleenergy for current details that apply to your needs.

Mono Solar Panel 50W, 12V Solar Module

IEC61215 & IEC61730
Couleenergy 50 Watt 12 Volt Monocrystalline Solar Panel is the essential component of a solar system when going off the grid. It comes with male and female MC4 connectors/leads, making it a fantastic starting for any off-grid system!

Additional information

Rated Power @ STC

50 Watts

Open Circuit Voltage

22.2V

Short Circuit Current

2.90A

Maximum Power Voltage

18.7V

Maximum Power Current

2.68A

Weight

3.1kg

Dimensions

740mm × 400mm × 25mm

Cell Dimensions

182mm × 39mm

Cell Quantity

17 × 2 = 34 Pieces

Maximum System Voltage

1500V

Junction Box

IP68

Frame

Aluminum Alloy, Silver or Black

Cable

4mm², Customized Length

Connector

MC4 Compatible

Application Level

Class A

NMOT

45±2°C

Temp Coefficient of ISC

+0.05%/°C

Temp Coefficient of VOC

-0.32%/°C

Temp Coefficient of Pmax

-0.39%/°C

Sample Evaluation

Yes

Mixed Loading

Yes

Mono Solar Panel 50W, 12V Solar Module

Mono Solar Panel 50W, 12V Solar Module
Options: Shingled Solar Panel 50W, All black Solar Panels, Dual-glass Solar Modules, Frameless PV Modules, Flexible Panel 50 Watts

  • 12V 50W mono solar panels undergo EL testing to ensure no hot-spot heating occurs, with bypass diodes to minimize power drop from the shade and guarantee excellent performance in low-light environments.

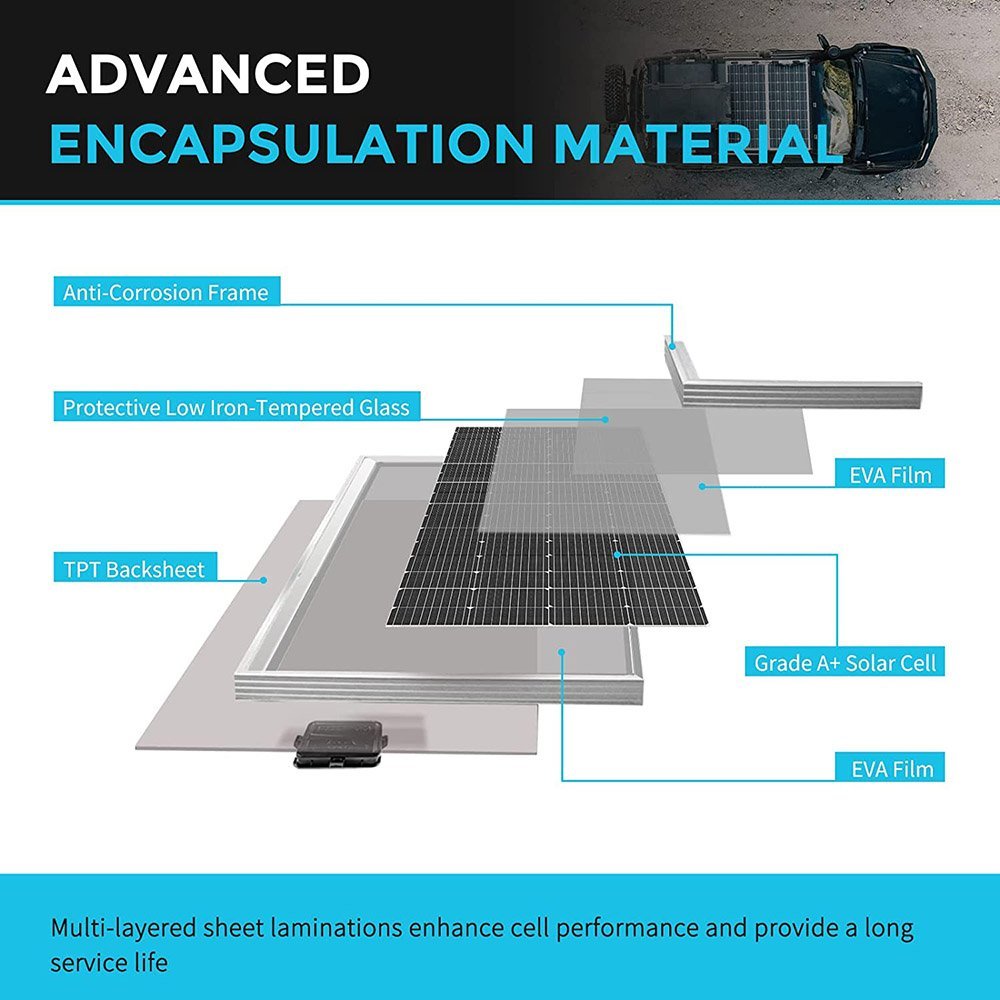

  • Designed for any outdoor use with a corrosion-resistant aluminum frame, anti-reflective, high transparency, and low-iron tempered glass with enhanced stiffness and impact resistance.
  • Couleenergy solar panels are engineered to withstand high winds (2400Pa) and snow loads (5400Pa) with a guaranteed positive output tolerance (0-3%).
  • The junction box is IP68-rated, providing complete protection against environmental particles and low-pressure water jets.
  • Couleenergy solar panels come with pre-drilled holes for grounding and are compatible with various mounting systems, including Z-Brackets, Pole Mounts, and Tilt Mounts.



Why do we figure out Voltage Open Circuit?

When the battery has been satisfied and No longer draws any charge-current, the charge controller is No longer loading the solar panels. Therefore, the charge controller sees the FULL OPEN CIRCUIT VOLTAGE across its input.

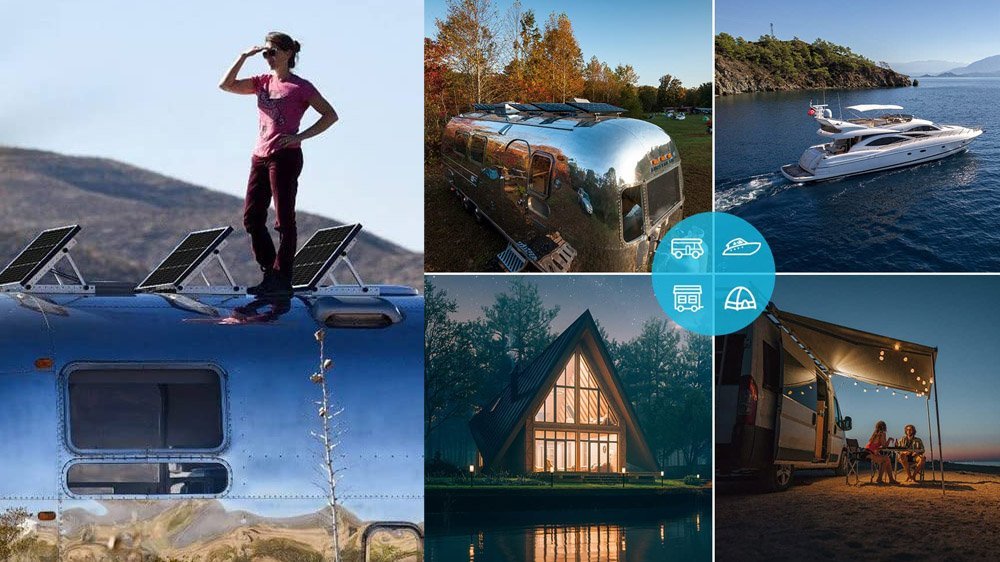

Off-grid Solar Panels, 12 Volts Solar Modules



Testimony

I installed nine of these on the roof of our RV, and I am generally satisfied with their performance. The only output issues I have experienced are that they are placed flat on the roof and not correctly aligned for optimal solar incidence. However, the mounting kits made installation easy. I prefer longer leads since I have to run cables to the back of the coach. Regardless it is not really an issue.
